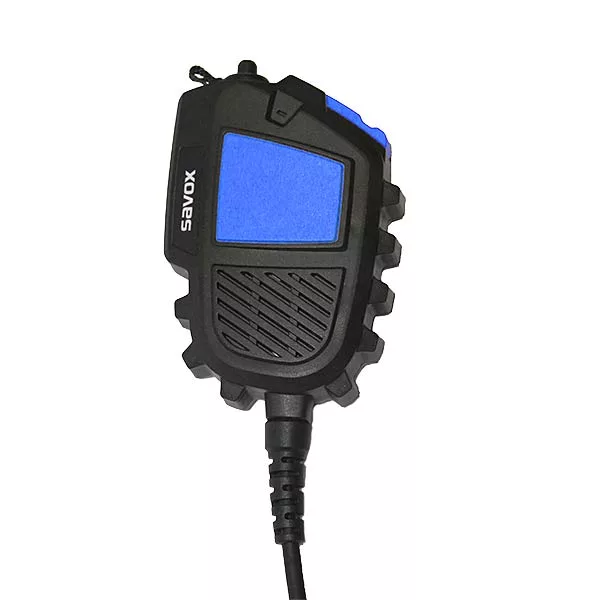

Savox C-C550Ex RSM / PTT

The Savox C-C550Ex RSM / PTT EX is a combined Remote Speaker Microphone and body worn Push To Talk unit. It is rugged and has been extensively tested (MIL-STD-810G) to provide robust and reliable communications for professionals working in harsh conditions. The SAVOX C-C550Ex is dust proof and submersible in water to 1m (IP67).

The Savox C-C550Ex RSM / PTT enables effective remote communications with the radio positioned under clothing and when wearing heavy gloves. Remote activation of the radio’s emergency button (radios specific) provides an additional safety feature.

• Allows remote operation of your two way radio
• Designed to be used when wearing heavy duty gloves
• Two easy to operate push to talk buttons
• Rugged design - dust proof and water submersible to IP67
• Extensively environmentally tested
• Excellent tactile operation
• Emergency button option (radio specific
• Volume up / down button (radio specific)
• 360 degree rotating clothing clip
• Enhanced speaker audio
• Non-ATEX Version available
• EU Tariff code: 8544421000

Specifications

WEIGHT: 170g
SIZE: 79mm x 115mm
MATERIAL: Polyamide
FIXING: 360° Rotating Clothing Clip
CONNECTORS:
4-Pole quick release jack for the headset, radio specific connector
OPERATING TEMPERATURE: -40°C to +85°C
STORAGE TEMPERATURE: -25°C to +85°C
SUPPLY VOLTAGE: 3.0 to 10.00 VDC
SPEAKER: 8 Ohm Max 2W, SPL 90Db/0.5W/0.2m
INGRESS PROTECTION: IP67
ESD, EMI IMMUNITY:
Conforms to EN 301-489-1 and EN301-489-18
OPERATIONAL LIFETIME: 500,000 Cycles
CURRENT DRAIN: Approx 0.5mA @ 6 VDC
